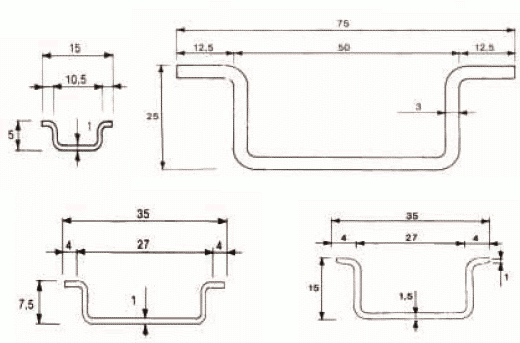

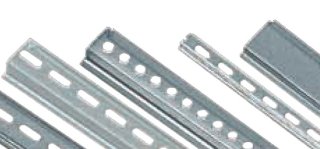

Omega Metal Rails - EN 60715

Rails with special white passivation. In accordance with EN ISO 4042 standards, the resistance to the salt spray test is 72 hours without the appearance of white corrosion and 120 hours without the appearance of red corrosion. Based on this data, the treatment has the same resistance as the old iridescent yellow passivation containing Cr6.

Produced in hot-dip galvanized steel using the "Sendzimir" process.

- "B" = Embossed
- "F" = Perforated
- "Z" = Hot-dip galvanized steel Sendzimir process
- "N" = Normal without embossing



SA-GO-1571

15 "B"

15x5

100

SA-GO-1589

15 "F"

15x5

100

SA-GO-3536

35 "B"

35x7,5

40

SA-GO-3577

35 "F"

35x7,5

40

SA-GO-3593

35 "NZ"

35x7,5

40

SA-GO-3578

35 "ZF"

35x7,5

40

SA-GO-3675

36 "NZ"

35x15

20

SA-GO-3685

36 "ZF"

35x15

20

SA-GO-3676

36 "B"

35 x 15

20

SA-GO-3684

36 "F"

35x15

20

SA-GO-7503

75 "N"

75x25

8
