Insulated flexible copper bar

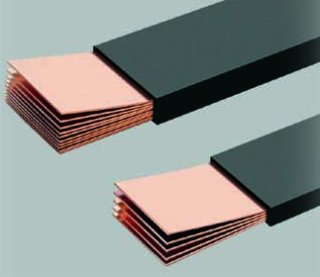

Insulated flexible copper bar, length 2 m. These bars consist of a laminated stack of red electrolytic copper coated with a self-extinguishing black PVC insulating layer, applied by extrusion, therefore without welds. Compliance with adequate tolerances between the core and the insulation makes the bars extremely flexible and prevents the formation of dangerous air pockets, which would reduce their dielectric strength. The insulating coating is a highly resistant black vinyl compound.

Main Features elongation: 365%
shore A hardness: 85
breaking strength: 19.6 N/mm2
operating temperature resistance: -25°C / +105°C according to UL 1581
fire behavior: self-extinguishing V0 (UL-94)
dielectric strength: 20 kV/mm

SA-BF Copper bars with threaded holes

SA-BFI Insulated flexible copper bar

SA-BS Tinned copper bars

SA-BA Accessories for copper bars

Code		L x S x N - mm x mm x #	S - mmq	I - A (dT=50°C)
SA-BF-2173	12 x 4	5	18	1
SA-BFI-BFI-1001056	9x0,8x2	9x0,8x2	14,4	130
SA-BFI-1001054	9x0,8x3	9x0,8x3	21,6	162
SA-BFI-1001057	9x0,8x4	9x0,8x4	28,8	190
SA-BFI-1001058	9x0,8x5	9x0,8x5	36,0	215
SA-BFI-1001194	9x0,8x6	9x0,8x6	43,2	240
SA-BFI-1001070	13x0,5x2	13x0,5x2	13,0	132
SA-BFI-1001071	13x0,5x3	13x0,5x3	19,5	163
SA-BFI-1001072	13x0,5x4	13x0,5x4	26,0	190
SA-BFI-1001050	13x0,5x6	13x0,5x6	39,0	237
SA-BFI-1001073	13x0,5x10	13x0,5x10	65,0	316
SA-BFI-1001074	15,5x0,8x2	15,5x0,8x2	24,8	192
SA-BFI-1001075	15,5x0,8x3	15,5x0,8x3	37,2	239
SA-BFI-1001076	15,5x0,8x4	15,5x0,8x4	39,6	279
SA-BFI-1001035	15,5x0,8x6	15,5x0,8x6	74,4	350
SA-BFI-1001085	15,5x0,8x8	15,5x0,8x8	99,2	412
SA-BFI-1001086	15,5x0,8x10	15,5x0,8x10	124,0	470
SA-BFI-1001279	20x1x2	20x1x2	40,0	263
SA-BFI-1001027	20x1x3	20x1x3	60,0	326
SA-BFI-1001087	20x1x4	20x1x4	80,0	381
SA-BFI-1001088	20x1x5	20x1x5	100,0	431
SA-BFI-1001028	20x1x6	20x1x6	120,0	477
SA-BFI-1001089	20x1x8	20x1x8	160,0	562
SA-BFI-1001029	20x1x10	20x1x10	200,0	640
SA-BFI-1001090	20x1x11	20x1x11	220,0	694
SA-BFI-1001280	24x1x2	24x1x2	48,0	303
SA-BFI-1001091	24x1x3	24x1x3	72,0	375
SA-BFI-1001253	24x1x4	24x1x4	96,0	438
SA-BFI-1001611	24x1x5	24x1x5	120,0	494
SA-BFI-1001255	24x1x6	24x1x6	144,0	547
SA-BFI-1001092	24x1x8	24x1x8	192,0	641
SA-BFI-1001184	24x1x10	24x1x10	240,0	727
SA-BFI-1001093	32x1x2	32x1x2	64	382
SA-BFI-1001281	32x1x3	32x1x3	96	471
SA-BFI-1001095	32x1x4	32x1x4	128	548
SA-BFI-1001612	32x1x5	32x1x5	160	617
SA-BFI-1001282	32x1x6	32x1x6	192	680
SA-BFI-1001283	32x1x8	32x1x8	256	793
SA-BFI-1001613	32x1x10	32x1x10	320	894
SA-BFI-1001097	40x1x2	40x1x2	80	458
SA-BFI-1001098	40x1x3	40x1x3	120	565
SA-BFI-1001210	40x1x4	40x1x4	160	655
SA-BFI-1001614	40x1x5	40x1x5	200	736
SA-BFI-1001256	40x1x6	40x1x6	240	809
SA-BFI-1001257	40x1x8	40x1x8	320	939
SA-BFI-1001615	40x1x10	40x1x10	400	1053
SA-BFI-1001211	50x1x3	50x1x3	150	679
SA-BFI-1001212	50x1x4	50x1x4	200	786
SA-BFI-1001060	50x1x5	50x1x5	250	880
SA-BFI-1001213	50x1x6	50x1x6	300	965
SA-BFI-1001214	50x1x8	50x1x8	400	1114
SA-BFI-1001509	50x1x10	50x1x10	500	1244
SA-BFI-1001215	63x1x5	63x1x5	315	1061
SA-BFI-1001216	63x1x6	63x1x6	368	1159
SA-BFI-1001217	63x1x8	63x1x8	504	1332
SA-BFI-1001510	63x1x10	63x1x10	630	1481
SA-BFI-1001220	80x1x5	80x1x5	400	1289
SA-BFI-1001221	80x1x6	80x1x6	480	1404
SA-BFI-1001222	80x1x8	80x1x8	640	1604
SA-BFI-1001061	80x1x10	80x1x10	800	1777
SA-BFI-1001223	100x1x4	100x1x4	400	1394
SA-BFI-1001224	100x1x5	100x1x5	500	1546
SA-BFI-1001225	100x1x6	100x1x6	600	1681
SA-BFI-1001226	100x1x8	100x1x8	800	1912
SA-BFI-1001273	100x1x10	100x1x10	1000	2110
SA-BFI-1001274	100x1x12	100x1x12	1200	2472
