Mini multi-phase busbar supports
Mini multi-phase busbar supports for output from switches. Made of fiberglass-reinforced polyester mass (130°C) red color RAL3002. halogen-free and self-extinguishing (UL94V0).

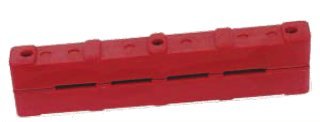

Monobloc and multi-phase, the "mini-ISOBAR" busbar supports have been designed to facilitate the exit of copper bars from the switches.
The SA-MPM-2025 busbar support allows supporting 4 bars of 20 mm (minimum thickness 2 mm) or 4 bars of 25 mm (minimum thickness 2 mm) with the same 20 mm or 25 mm sides resting on the "mini-ISOBAR".
The SA-MPM-2066 busbar support, on the other hand, allows supporting 4 bars of 30 mm (minimum thickness 4 mm) with the same 30 mm side resting on the "mini-ISOBAR".
Legend:
- F = number of phases
- B = busbar support base in the slots
- H = minimum busbar height (mm)
- kN = resistance to instantaneous electrodynamic stresses of attraction or repulsion between pairs of bars of different phases in KiloNewton (1 Kg = 9.8 N).
- C = number of slots per phase
| Code | F | C | B - mm | H - mm | kN (+/- 10%) |
SA-MPM-2025 4 |
4 |
1 |
20 |
2 |
4 |
SA-MPM-2066 4 |
4 |
4 |
30 |
4 |
6 |
