Modular busbar support system

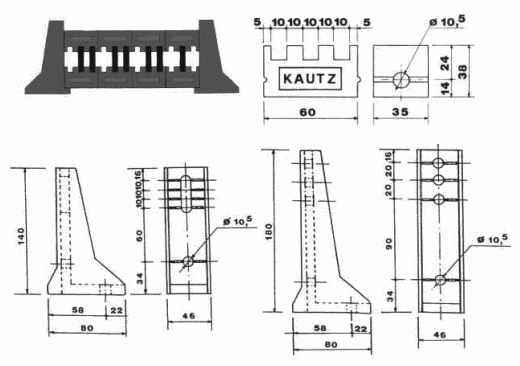

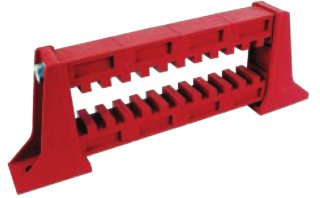

Modular busbar support system (for 10 mm busbars) tested according to DIN EN 60439-1/1994 - VDE 0660 Part 500/4.94, the "KAUTZ" busbar system is composed of the SA-SPC-9228 block and two types of support shoulders (SA-SPC-9202 and SA-SPC-9210). By appropriately combining the different components, the "KAUTZ" system can meet the most diverse requirements for the number of busbars per phase and phase-to-phase distances.
Supportable busbar dimensions
- 30 x 10 mm (with SA-SPC-9202 support shoulder)
- 40 x 10 mm (with SA-SPC-9202 support shoulder)
- 50 x 10 mm (with SA-SPC-9202 support shoulder)
- 60 x 10 mm (with SA-SPC-9202 or SA-SPC-9210 shoulder)
- 80 x 10 mm (with SA-SPC-9210 support shoulder)
- 100 x 10 mm (with SA-SPC-9210 support shoulder)
"KAUTZ" blocks and support shoulders are made of fiberglass-reinforced polyester compound (130°C), red color RAL3002.
Halogen-free, self-extinguishing (UL94-V0)
|
||
SA-SPC-9228 |
60 |
|
SA-SPC-9202 |
H=30/40/50/60 mm |
16 |
SA-SPC-9210 |
H=60/80/100 mm |
12 |
