Bushing insulators

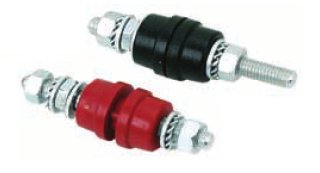

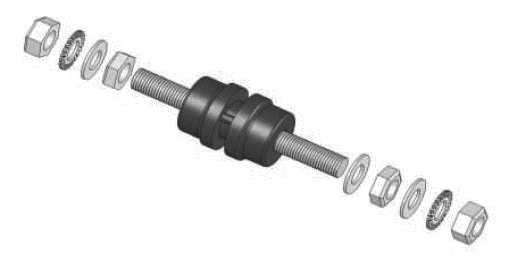

Used as an electrical connection between internal and external parts of panels and electrical equipment. They consist of a threaded pin (completed with nuts and washers) that acts as an electrical connection and two interlocking plastic parts that act as an insulator.
Features:
- Polyamide PA6 with fiberglass (UL94-V0). Black or red
- Material of metal parts: Steel (white zinc plating RoHS compliant) or nickel-plated brass
- Maximum operating temperature: 110°C
- Maximum operating voltage: 1000 V
Also available with tie rod thread of:
- M4
- M6
- M16
- M20
Design of special versions on request

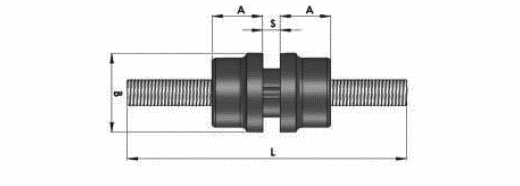

| Code | MA | I - A | L - mm | A - mm | B - mm | S - mm | D - mm | D1 - mm | |
SA-IPA-8R |
8 |
80 |
80 |
13,5 |
25 |
5 |
15,5 |
3,5 |
500 |
SA-IPA-8N |
8 |
80 |
80 |
13,5 |
25 |
5 |
15,5 |
3,5 |
100 |
SA-IPA-10R |
10 |
120 |
95 |
15 |
30 |
5 |
17,5 |
4,5 |
500 |
SA-IPA-10N |
10 |
120 |
95 |
15 |
30 |
5 |
17,5 |
4,5 |
100 |
SA-IPA-12R |
12 |
200 |
105 |
17 |
35 |
5 |
20,5 |
5 |
500 |
