Blue Cable Channels

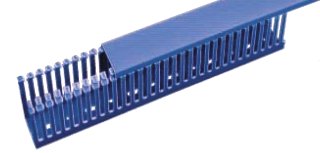

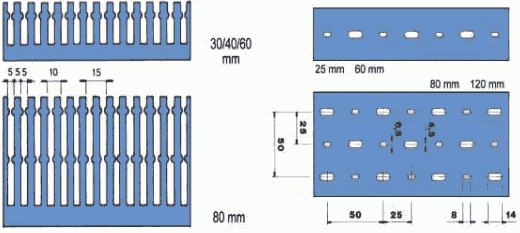

Blue cable channels with narrow slots (model 6)

Characteristics:
Raw material: Self-extinguishing rigid PVC (UL94 V0)
Standard color: BLUE RAL 5015
Standard length: 2-meter bars
Maximum temperature: continuous operation 63°C
Provided complete with removable cover

SA-CB Blue Cable Channels

SA-CAS Narrow Slot Cable Channels

SA-CAL Wide Slot Cable Channels

SA-CASP Special Slot Cable Channels

SA-CF Flexible Cable Channels

SA-TC Cable Channel Cutting

SA-CPVC Complementary PVC Products

Code	W x H - mm	S - mmq
SA-CB-6216	30x30	700	120
SA-CB-6224	25x40	790	100
SA-CB-6232	40x40	1340	72
SA-CB-6240	60x40	2000	48
SA-CB-6307	25x60	1195	64
SA-CB-6315	40x60	2000	48
SA-CB-6323	60x60	3050	32
SA-CB-6331	80x60	4200	48
SA-CB-6414	25x80	1540	42
SA-CB-6422	40x80	2690	60
SA-CB-6430	60x80	4170	48
SA-CB-6448	80x80	5680	36
SA-CB-6455	100x80	7180	24
SA-CB-6463	120x80	8680	24
