Narrow Slot Wiring Channels

Wiring Channels

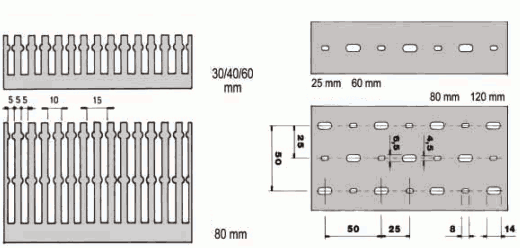

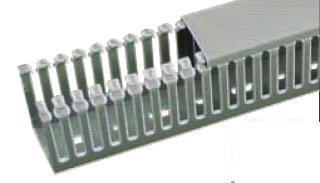

Narrow slot wiring channels (model 6)

Characteristics:
Raw material: Self-extinguishing rigid PVC (UL94 V0)
Standard color: GRAY RAL 7030
Standard length: 2-meter bars
Maximum temperature: continuous operation 63°C
Supplied complete with removable cover

SA-CB Blue Wiring Channels

SA-CAS Narrow Slot Wiring Channels

SA-CAL Wide Slot Wiring Channels

SA-CASP Special Slot Wiring Channels

SA-CF Flexible Wiring Channels

SA-TC Wiring Channel Cutting

SA-CPVC Complementary PVC Channel Products

Code	B x H - mm	S - sq mm
SA-CAS-6216	30x30	700	120
SA-CAS-6224	25x40	790	100
SA-CAS-6232	40x40	1340	72
SA-CAS-6240	60x40	2000	48
SA-CAS-6257	80x40	2720	60
SA-CAS-6307	25x60	1195	64
SA-CAS-6315	40x60	2000	48
SA-CAS-6323	60x60	3050	32
SA-CAS-6331	80x60	4200	48
SA-CAS-6349	100x60	5310	32
SA-CAS-6414	25x80	1540	42
SA-CAS-6422	40x80	2690	60
SA-CAS-6430	60x80	4170	48
SA-CAS-6448	80x80	5680	36
SA-CAS-6455	100x80	7180	24
SA-CAS-6463	120x80	8680	24
