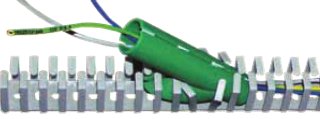

Flexible Cable Channels
Flexible cable channels for electrical wiring with narrow slots and upper slats positioned side by side and slightly tilted downwards, suitable for: connections between panels and compass-opening doors installation in tight spaces self-adhesive fixings Advantages compared to traditional cable channels: quick installation cable derivation from the top and sides Better external dimensions/internal useful surface ratio Easier cable insertion with and without special tools Simplified cable extraction by pulling Accidental cable protrusion control in compliance with CEI standards Constructive characteristics: Molded in one piece in self-extinguishing polypropylene (MOPLEN) (UL94 V2). Color GRAY RAL 7040 Standard length: 500 mm It is elastic: bends, twists, folds but does not break, opposing the so-called hinge effect External bottom predisposed with double-sided tape with adhesiveness on steel 8N/cm, resistance to ambient temperature of 80°C with maximum peaks up to 110°C for short periods, good resistance to solvents and ultraviolet rays. Can also be fixed with screws or rivets through special oversized slots (mm 4.5 x 8) and oriented alternately on two axes to allow possible position adjustments.
| Code | W x H - mm | T | ||
SA-CF-1313-0 |
12.5x12.5 |
V |
1008 |
112 |
SA-CF-1313-4 |
12.5x12.5 |
A |
1008 |
112 |
SA-CF-1616-0 |
16x16 |
V |
1008 |
84 |
SA-CF-1616-4 |
16x16 |
A |
1008 |
84 |
SA-CF-2020-0 |
20x20 |
V |
1015 |
112 |
SA-CF-2020-4 |
20x20 |
A |
1015 |
112 |
SA-CF-2525-0 |
25x25 |
V |
1020 |
70 |
SA-CF-2525-4 |
25x25 |
A |
1020 |
70 |
SA-CF-3030-0 |
30x30 |
V |
1020 |
50 |
SA-CF-3030-4 |
30x30 |
A |
1020 |
50 |
SA-CF-4040-0 |
40x40 |
V |
1025 |
50 |
SA-CF-4040-4 |
40x40 |
A |
1025 |
50 |
SA-CF-5050-0 |
50x50 |
V |
|
32 |
SA-CF-5050-4 |
50x50 |
A |
|
32 |
